  ITEM DETAILS
  All Products »  Repeater Controller »  SR-629 Duplex Repeater Controller

SR-629 Duplex Repeater Controller       SR-629 Duplex Repeater Controller       SR-629 Duplex Repeater Controller       SR-629 Duplex Repeater Controller       SR-629 Duplex Repeater Controller       SR-629 Duplex Repeater Controller

Item Code: SR-629
Product Name: SR-629 Duplex Repeater Controller
Ask a question about this

  Description


Features

SR-629 Duplex Repeater Controller
The SR-629 is a multi-function and cheaper device that connects any handheld or mobile radio.

By equipment and so on our assemble the build, the new generation
trunk-line board,the internal structure design are finer, the outward appearance is
more attractive. Beside scan provide a the basic repeater function which has
following the receiver transmitter,furthermore has the Simple connection,
provides the more ideal 2-way radio conversation region for you, causes you
maintains the relation in the bigger operating region.

When the radio units are connected, the received signal on a radio unit will
be real time transmit on the other radio unit.
e.g. VHF/VHF, UHF/UHF, VHF/UHF or UHF/VHF modes
Mode 1: When Radio A is RX, control to Radio B will TX.
               When Radio B is RX,  control no Funtion

Mode 2 : When Radio A is RX, control to Radio B will TX.
               When Radio B is RX, control to Radio A will TX.

The purpose can be done in two different places and using different
frequency bands intercom, through our mutual communication relay station.

This is a radio cross band duplex repeater controller. It is an easy of operation
and cost effective and highly flexible platform for setting up bi-direction
cross band duplex repeater with mobile radio and handheld radio.

The SR-629 has 2 audio ports input and out , they are used to connect with mobile
and handheld radio.  Multi-LED display 2 of radio status , and build-in battery Level

Major Features

  • Works with most popular handheld radios
  • Multi- LED display 2 radio status , And controller Battery Level
  • Real time duplex repeater with link radio
  • Allows user to change the DTMF remote control password by radio
  • Operates on both build-in Li-ion battery 72 hours long life operation
  • External DC 5V  power supply
  • Professional manufacturer low power consumption .
  • Two mode select  .

Package Contents

1x SR-629  Duplex Repeater Controller
1x English User Manual

1x USB charger cable
1x USB AC adapter 100-240V



SURECOM REPEATER Connect Cable (optional)

 Parts No. Fit Radio Model
46-K 2 pin of Kenwood Baofeng PUXING WOUXUN QUANSHENG   Order
46-M MOTOROLA :GP68, GP88S, GP308, GP350, GP2000....                More...  Order
46-M+8-005 MOTOROLA:GP1280, GP140, GP320, GP328, GP329                  More...  Order
46-M+8-001B MOTOROLA:GP328 Plus, GP338 Plus, GP344,                              More...  Order
46-MT MOTOROLA Talkabout:FV800, T4500, T4800, T4900, T5000      More...  Order
46-S2/S ICOM :IC-T7H ,IC-W32A,IC-F3, MIDLAND75-785, 75440, GTX-2 More...  Order
46-Y YAESU FT-50,FT-60R,VXF-1,VX-1R, VX-2R. VX-3R,                       More...  Order
46-Y7 YAESU: VX-7R  FT-270 ,FT-277 , HX-471 ,VX-6R/E , VX-7R /E      More...  Order
Connect handheld Mobile radio
46-GM MOTOROLA :GM-300 GM3188 GM360 GM950GM340....  Order
48-K KENWOOD: TK-271,TK-88,TK-471,TK-768 TK-8100, TK-7150, TK-8150...  Order
48-T1 TYT : WM-9000,WM-9000D,WACCOM :  WM-9000,WM-9000D  Order
48-Y1 YAESU :FT-8900,FT-7800,FT-8800,BAOJIE : BJ9900,TYT :TH-7800,TH-9800  Order
48-T1+49-B Baofeng(pofungBF-9500U  Order
48-T1+49-Q QYT: KT-UV980 ,   KT-8900R  Order
48-T1+49-S ICOM:  IC-2200H, IC-E208, IC-208H, IC-2100H,IC  Order
48-T1+49-W WOUXUN :KG-UV920  Order
  For D.I.Y
48-PC1 for PC  Order
46-C 40CM Cable w/socket for D.I.Y.  Order
46-D 40CM Cable  for D.I.Y.  Order



Repeater with Cable sell

  SURECOM  MODEL
 With Cable MODEL SR-112 SR-328 SR-628 SR-629
No Cable    Order
+ 46-K Order Order Order Order
+46-M Order Order Order
+46-MT Order Order Order
+46-S/S2 Order Order Order
+46-Y Order Order Order
+46-Y7 Order Order Order
+48-K1 Order
+48-T Order
+48-Y Order
+48-B Order
+48-S Order
+48-W Order

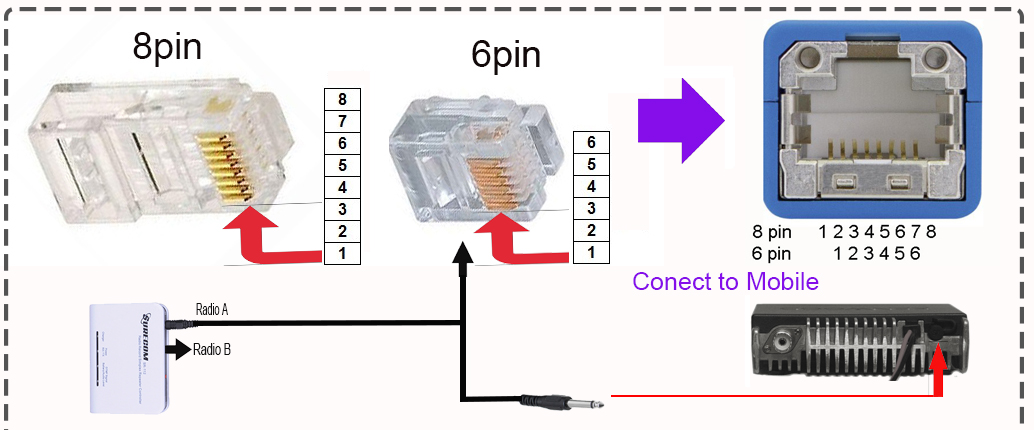

information : RJ Pin for MOBILE cable

     8Pin RJ Mic Plug to Radio (PIN)
Parts No. Fit Model     1       2     3    4       5       6       7       8
48-K KENWOOD   GND PTT GND MIC   NO pin NO pin
48-T1 TYT  GND PTT Mic in / / / / /
48-Y1   YAESU / / / GND MIC PTT / /
 48-T1+49-B BAOFENG GND / MIC / / PTT / /
 48-T1+49-Q QYT / / GND PTT MIC / / /
48-T1+49-S ICOM / GND MIC GND PTT / / /
48-T1+49-W WOUXUN MIC GND / / / PTT / /


Surecom Repeater controller function Compare

MODEL SR-112   SR-328        SR-628      SR-629
MANUAL
 Radio  A- RX  Contol  to A TX YES No Function
Connect Radio  1
Audio Transfer  Echo reply Real time reply
Radio  A- RX  Control  to Radio  A- TX                          Radio  B-TX
Radio  B- RX  Control  to No Function Radio  A-TX
Mode select function  No Function YES
Two mode select   No Function YES
 Control function by DTMF  YES  No Function
Input Audio Level YES  No Function
Sleep mode  YES No Function
Build-Li-ion Battery  3.7V 900Mah  3.7V 600Mah
Battery LED: Charge/Full  RED / BLUE  RED /GREEN
LED Status :TX/RX  BLUE/RED  RED /BLUE  RED /GREEN
SIZE 110 x 80 x 25mm  70 x 90 x 25mm
Weight 113g  90g
DC INPUT  +5V-24V  +5V
DC INPUT PLUG  5.5/2.1mm (Center pole +) Mirco USB


How to set function mode from SR-112/SR-328/SR-628/SR-629

FUNCTION  /  MODEL SR-112 SR-328 SR-628 SR-629
Repeat ## 71 No Function
Power On    Press Red switch 2 sec.   by Switch
Mode select     No Function YES
   A- RX    control to B-TX       mode 1  No Function DTMF PUSH PTT "##612" Switch to LEFT
    A- RX   control to  B-TX
    B- RX   control to  A-TX     mode 2
No Function DTMF PUSH PTT "##613" Switch to RIGHT
SLEEP  mode on  PUSH PTT DTMF"##28888"  No Function
SLEEP  mode off  PUSH PTT DTMF "##18888"  No Function
